MTP Manually Operated Pump

The MTP manual pump is specifically designed for lubrication points that do not require continuous lubrication, capable of re- liably and accurately delivering lubricant. Constructed with a robust design, the pump features dual-piston drive and is equipped with a 3-liter capacity oil tank integrated with an agitator, ensuring uniform lubricant delivery under var- ious operating conditions. It offers stable and reliable performa- nce, maintaining effective operation even in low-temperature environments. With a working pressure of up to 300 bar, it is suitable for intermittent oil supply requirements in medium- to high-pressure lubrication systems.

Technical Information of MTP Manually Operated Pump


Technical data

Outlets

2

Outlet connection

G1/4

Lubricant output per stroke

1 output:2ml/cyc  ;2 outputs: 2×1ml/cyc

Operating pressure

30MPa;4350psi

Reservoir capacity

3L

Lubricant

OIL、000、00、0、 1、2、3

Operating temperature

-20 ~ 70℃

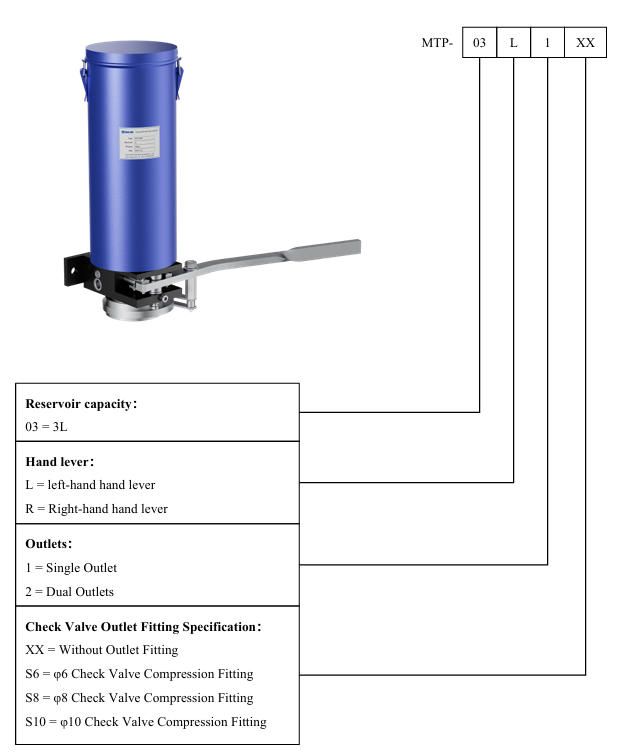

Ordering information of MTP Manually Operated Pump

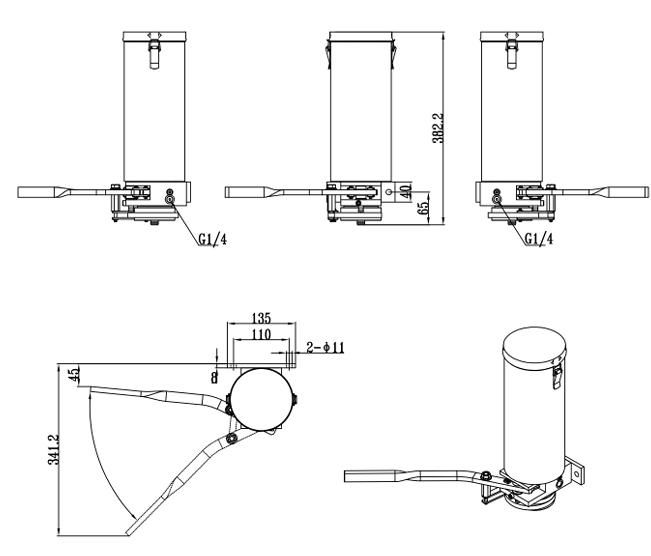

Dimensions(mm) of MTP Manually Operated Pump





Parts ordering information
Check Valve Compression Fitting

Item Number

Model Number

Tube OD

Thread


0601099

5VM0604

Ø6

G1/4"

5VM0804

5VM0804

Ø8

G1/4"

0601069

5VM1004

Ø10

G1/4"


Characteristics of MTP Manually Operated Pump


  • Suitable for use with dual-line or progressive systems

  • Dispenses greases up to NLGI 3

  • Available with left- or right-hand lever


Cisolube offer custom lubrication pumps with a wide selection, Contact now!



Applications of MTP Manually Operated Pump


  • Metal forming machines

  • Roll straighteners

  • Tyre heating presses

  • Harbor cranes
